AudioNote PQ Signature Kit1 - Miscellaneous Pictures

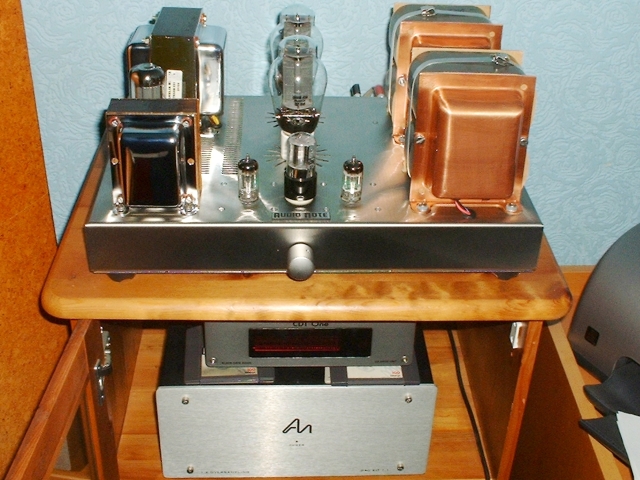

Connected to its companions for the first time - AN DAC Kit1.1 and AN CDT-One CD Transport.
The amp is feeding a pair of 15" Tannoy DC386 dual concentric speakers (not shown) that I've had for
around 20 years.

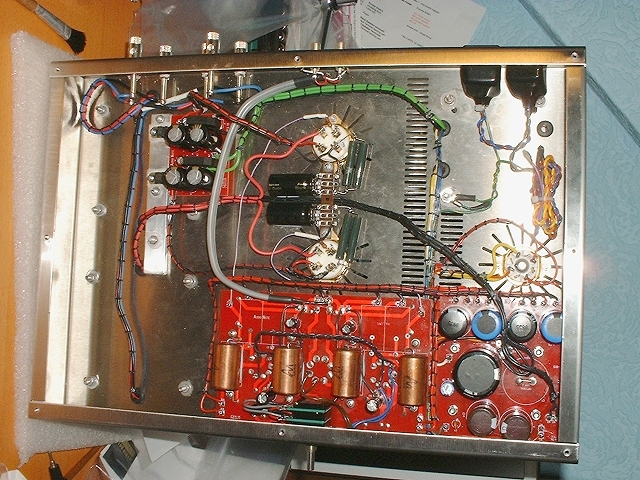

Completed wiring

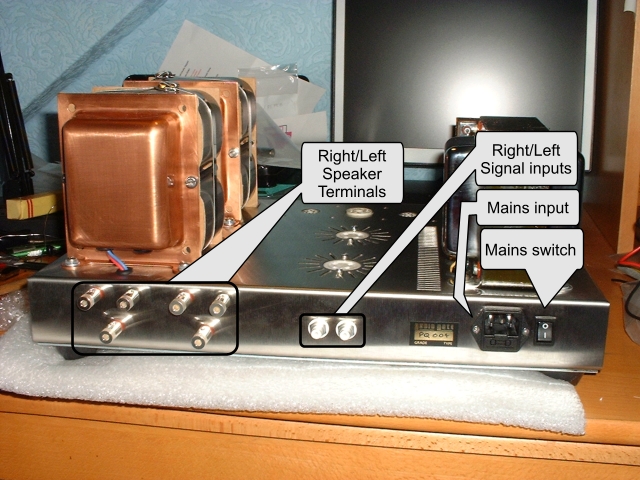

View from the rear.

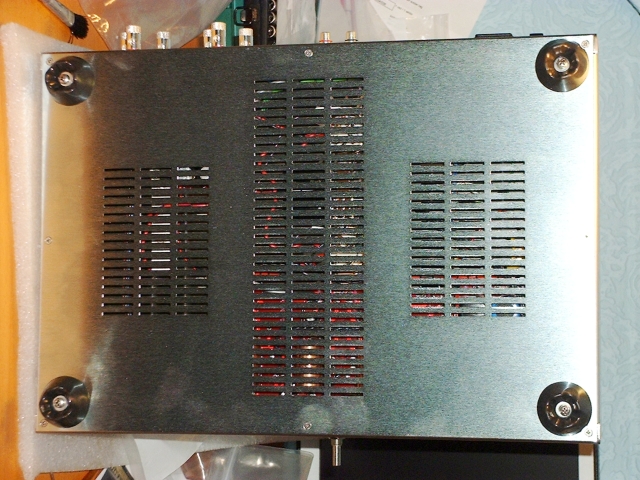

The baseplate fits snuggly onto the bottom of the chassis with its significant rubber feet.

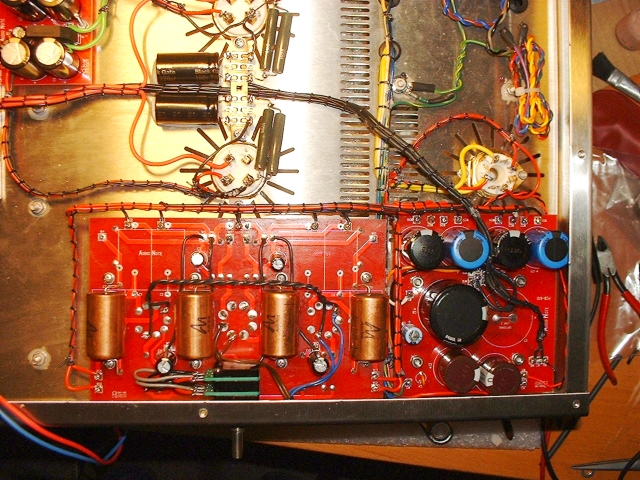

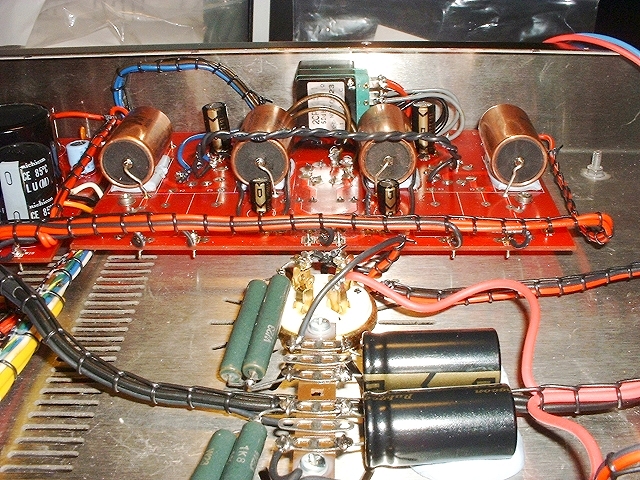

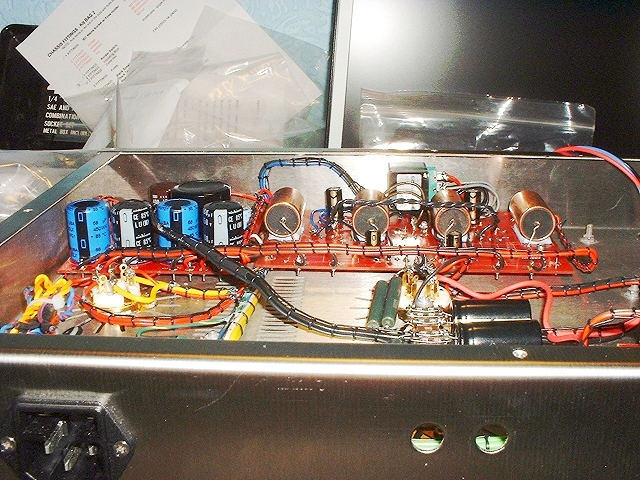

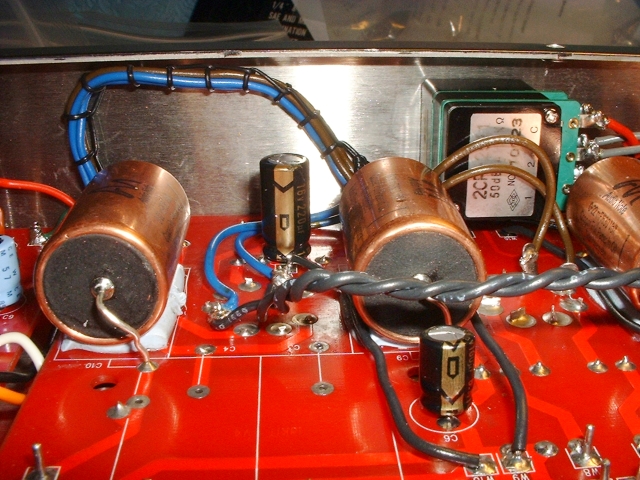

The following are general wiring pictures from various stages of the build.
